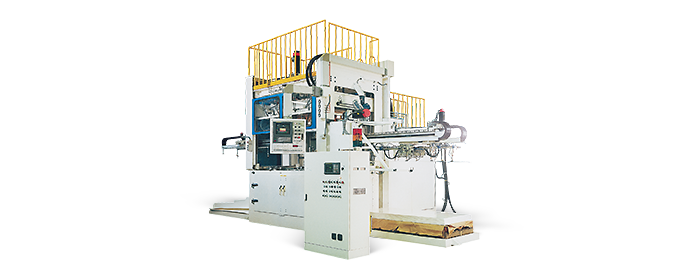

FCSP Single station type pressure and vacuum thermoforming machine

FCSP Single station type pressure and vacuum thermoforming machine

A FCS type machine has pressure forming function. Suits for bathtub, washstand and automobile components.

Heater is Asano quick response heater. Forming table is AC servo motor drive. Standard forming position is front center so that easy to operate

Process

Process

Specification

Main forming products Bathtub, washstand, automobile components.
Materials PVC, HIPS, ABS, PMMA, PC, PE etc.
Forming method Vacuum and pressure forming
Heater Asano quick response heater
Formig table driven Ball screw by AC servo motor drive
Model Max. forming area
(W x L, mm)
Max. forming depth
(mm)
Max. mold clamping force
(kN)
FCSP-660APA-W-50-L 1050 x 2000 600 500
