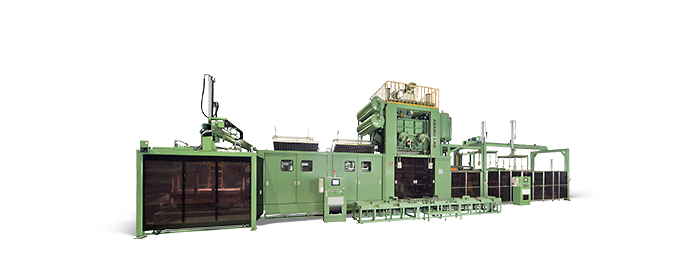

Suits for door liner of the refrigerator, automobile components and building material.
Sheet feeding and forming table are AC servo motor driven. To use mold change device mold can be changed within 15 minutes.
| Main forming products |
Door liner of the refrigerator, automobile components and building material |
|---|---|
| Materials | ABS,HIPS etc. |
| Forming method | Vacuum and pressure forming |
| Sheet feeding method | AC servo motor driven, spike chain type |
| Model |
Max. forming area (W x L, mm) |
Max. forming depth (mm) |
Max. mold clamping force (kN) |
Heater | Trimming table |
|---|---|---|---|---|---|
| FLTP-9602-30 | 1000 x 2000 | height of formed part positive 250, negative 600 | 300 | Ceramic heater | Hydraulic cylinder drive |
| FLTP-9602-35 | 1000 x 2000 | height of formed part positive 250, negative 600 | 350 | Quick response heater | Ball screw by AC servo motor drive |
* Avaliable other forming size.
