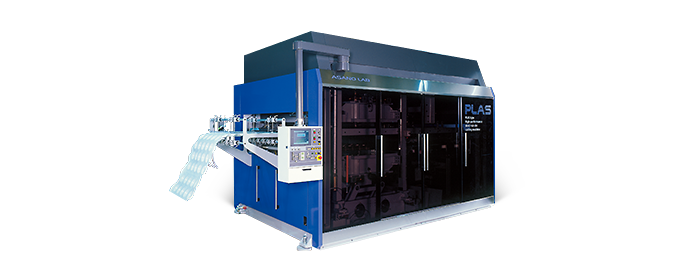

Cutting machine with
steel rule die
which
cuts whole cavities in a shot. Connected with FLC,
CLS etc forming machine, production line gets high speed and
stable.
Steel rule die
prevents products from plastic chips.
The sensor for
feeding the sheet and the function of grip opening prevent
from trimming slide.
Sheet feeding, cutting table and counting table are AC servo motor driven. Scrap　winder equipment is standard specification.
| Sheet feeding method | AC servo motor driven, grip type chain |
|---|---|
| Trimming table driven | Crank type by AC servo motor drive |
| Model |
Max. trimming area (W x L, mm) |
Max. forming depth (mm) |
Trimming force (kN) |
|---|---|---|---|
| PLAS-800-2 | 800 x 800 | height of formed part positive 150, negative 80 | 700 |
| PLAS-1050-2 | 1050 x 1200 | height of formed part positive 150, negative 80 | 700 |

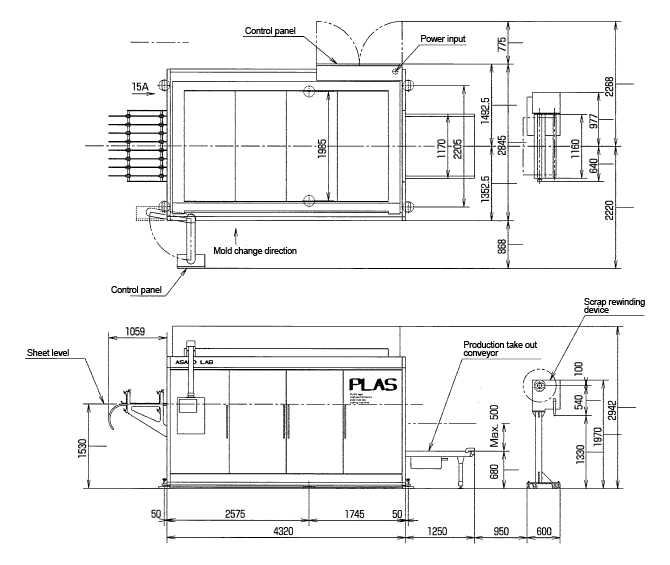

(PLAS1050-2)
